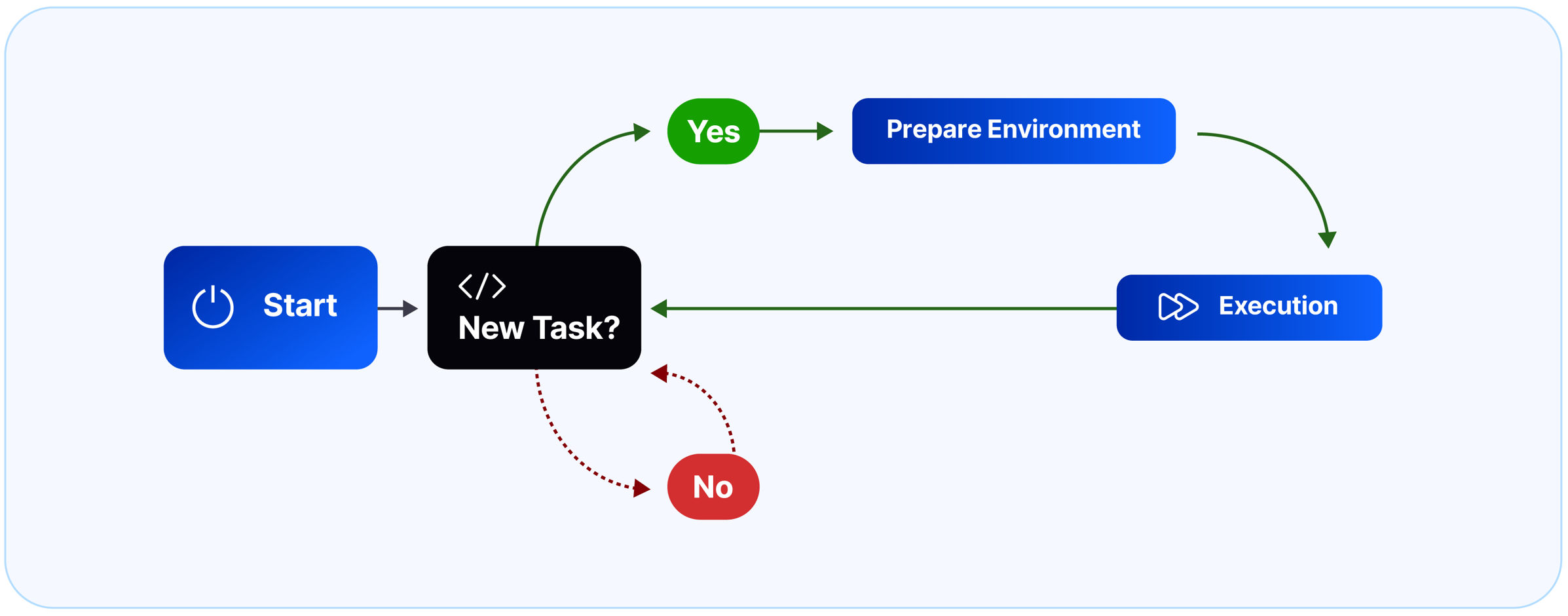

Runners are runtime environments used to execute the bots. It can be associated with a virtual machine, a container, or a physical machine. Basically, the BotCity Runner is an executed process to get tasks, download bot binaries and put them in execution.
The Runners module views information about the runtime environments, including basic information such as status, execution log, and screen (for GUI-based automation).
BotCity has two types of Runners, the Desktop and the Background.
They are Runners used to automate tasks that need to access a user's graphical interface (GUI), such as a desktop application, an ERP, or even direct actions in the operating system.
Desktop Runners can only perform one task at a time, preventing parallelism in executing the task.
Background Runners are used to automate tasks that do not use a graphical interface, such as headless web automation, crawlers, and API integrations.
It is possible to use more than one Background Runner in the same execution environment, thus managing to run more than one automation at the same time when they are defined to run in the background; in this way, it is possible to maintain parallelism in the execution.
How to setup a Runner¶
Configuring a new Runner can be divided basically into two steps:
- Creation of a Runner in BotCity Maestro
- Runner configuration in the runtime environment
Creating a new Runner in Maestro¶
Create a new Runner by clicking the
+ New Runner button in the top left corner.
Fill in the form with the required information and click on
Here is an example of how to create a Runner:
Configuring a Runner in the runtime environment¶
After creating the Runner in Maestro, we can configure the reference for this created Runner in our runtime environment.
This way, the Runner active in the runtime environment will be associated with the Runner created in the platform.
The easiest way to configure a new Runner in the runtime environment is through the BotCity Wizard. You can see more details about Wizard and SDK installation through the BotCity Studio SDK section.
In the folder where the SDK was installed, open the
X.Y.Z are the Wizard's version.
From this screen, we can select the Setup BotCity Runner option.
In this step, we will inform our access credentials so that the authentication in Maestro can be performed.
If you are using an exclusive workspace, for example:
you can use this custom URL when informing the Server.
For the community version, use
By clicking next, you can view all existing Runners in your Maestro workspace.
Just select the Runner identifier you want to link to the Runner of this runtime environment.
That way, when starting Runner in the runtime environment via the SDK's
this Runner will be associated with the Runner that was created in BotCity Maestro.
You can also create new Runners from the Wizard; just select the Create a new One option, and enter an identifier for the Runner.
In this case, the creation on the platform and the association with the runtime Runner will be done automatically.
Runner's configuration is defined by information in the
conf.bcf file, located in the
conf folder where the SDK was installed.
You can see more details about the config file through this link.

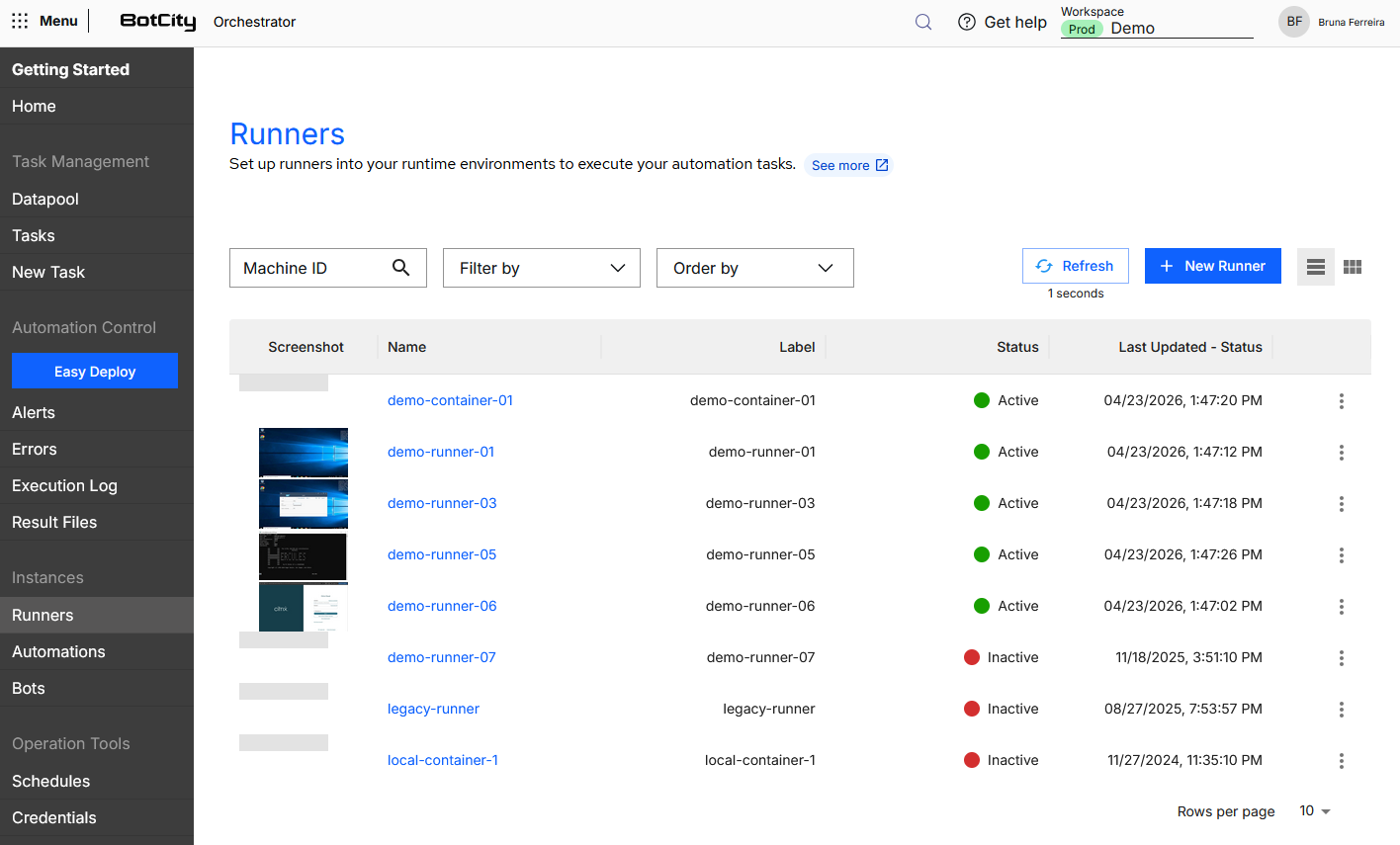

Each Runner created will have a Runner card that represents it, as we can see below:
The circle in green or red indicates whether or not a BotRunner is in execution in that resource right now.
For GUI-based automation, it’s possible to see a screenshot that is taken every minute (when enabled). Just click on the screenshot thumbnail to see in a higher resolution.

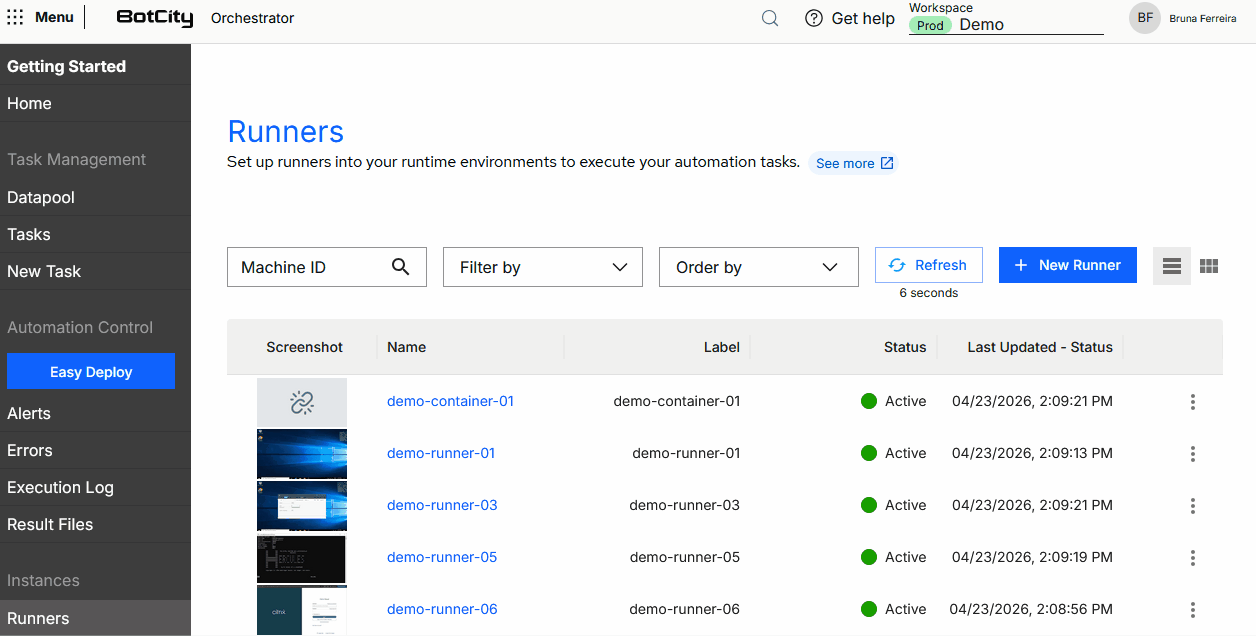

You can access the Runner Card menu to view additional information, such as:
- Info: Basic information about this runtime environment.
- Logs: Automation execution log trace.
- Screenshot: Download the current screenshot.
- Edit: Update some info about this runtime environment.
- Delete: Remove this Runner instance on Maestro.
By default, telemetry information is not collected by Runner. If you want this information sent to Maestro, include an additional configuration.
conf.bcf file located in the
conf folder of the SDK, just set the
You can view the available configuration parameters by accessing this link.
You can access Runner's telemetry through the Info option of the Runner card menu, shown above.

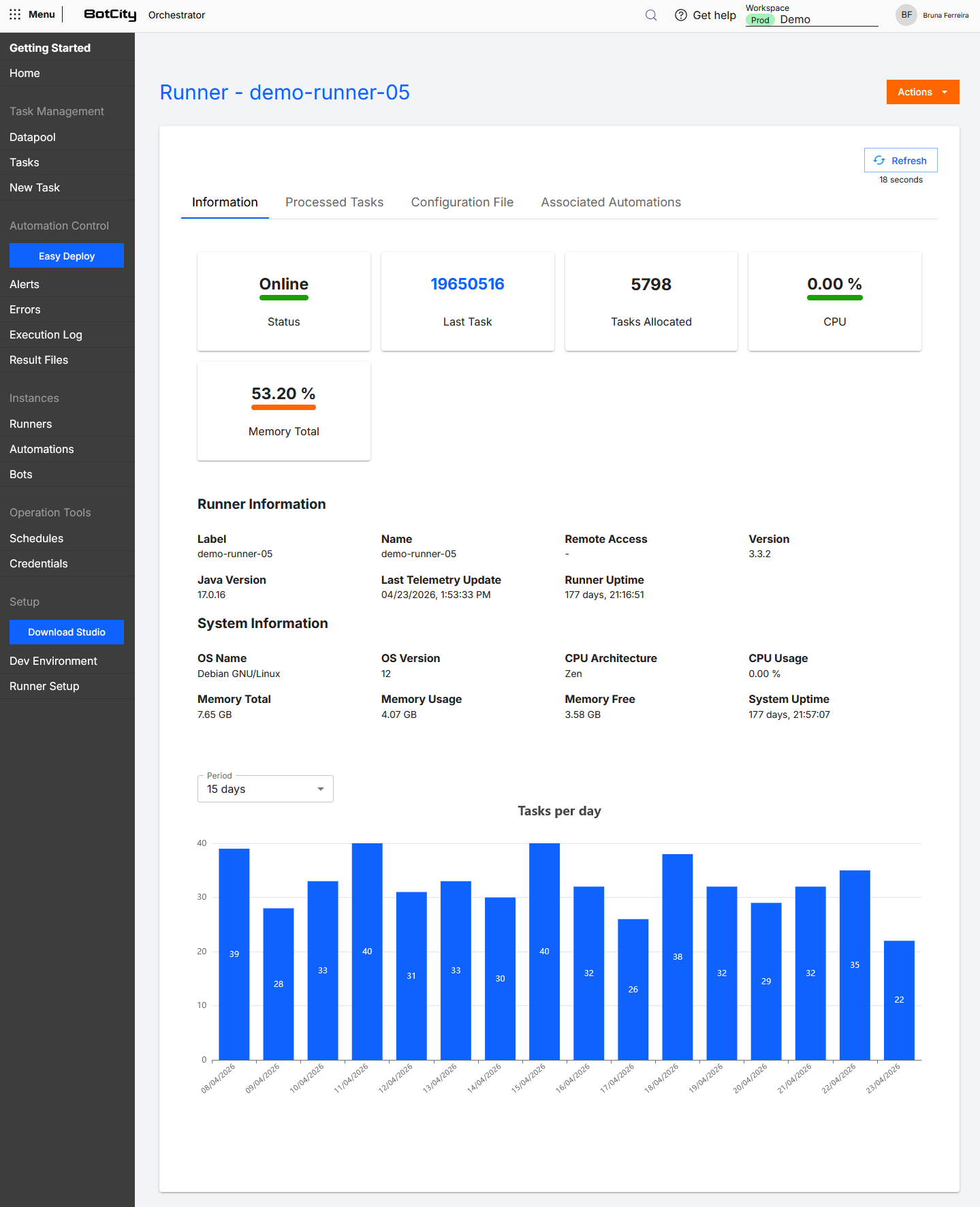

General Runner Information¶
- Status: Indicates the current Runner status, whether he is
- Last Task: ID of the last task executed.
- Tasks Allocated: Indicates the number of automations allocated in this Runner.
- CPU: Indicates the use of the machine's CPU where the Runner was allocated.
- Memory Total: Total machine memory in
- Label: Runner identifier.
- Name: Runner name.
- Remote Access: Remote access information.
- Type: The Runner type.
- Version: Identifies the version of the Runner being used.
- Java Version: Indicates the Java version installed on the machine where the Runner was allocated.
- Last Telemetry Update: Informs the last time (date and time) that telemetry has been updated.
- Runner Uptime: The time the Runner has been or is active.
- OS Name: Name of the machine operating system where the Runner is allocated.
- OS Version: Version of the machine operating system where the Runner is allocated.
- CPU Architecture: Shows the architecture of the CPU.
- CPU Usage: Indicates the percentage of use of the CPU.
- Memory Total: Total system memory.
- Memory Usage: Total memory in use.
- Memory Free: Free total Memory.
- System Uptime: The time the system is active.
Graph - Tasks per day¶
In addition to all the information, you can also follow a graph of the tasks performed on the Runner according to specific periods such as last week, last 15 days and last month.
Accessing the Processed Tasks tab, you can view a list of tasks this Runner processed.

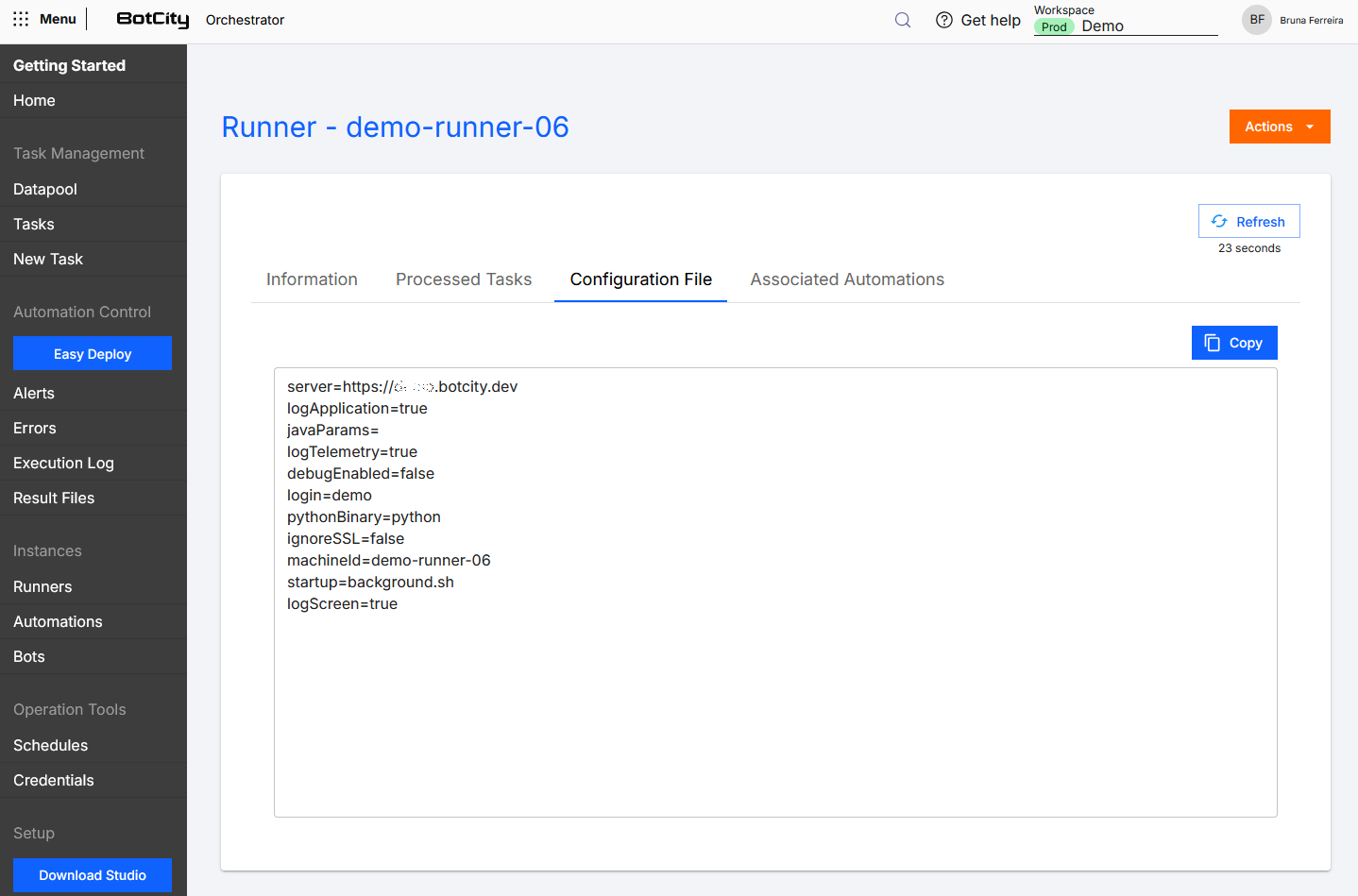

Accessing the Configuration File tab, you can view the content of the
conf.bcf file, which defines the Runner settings.
